Our ES800 product line is now available to order on our store:

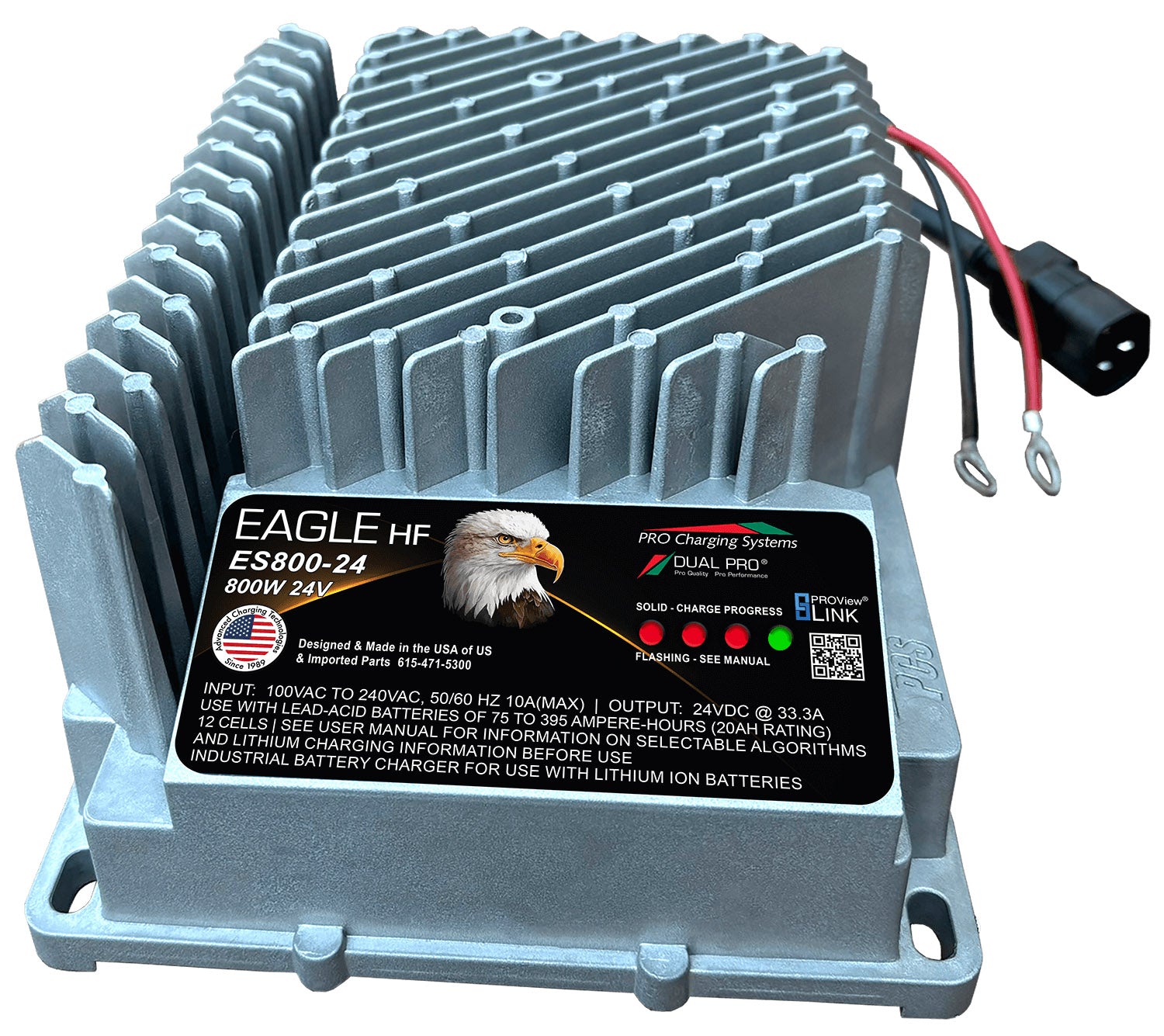

- Standard onboard models for 24V, 36V & 48V systems include: ES0800-24V001, 36V001 & 48V001 options come with ring terminals.

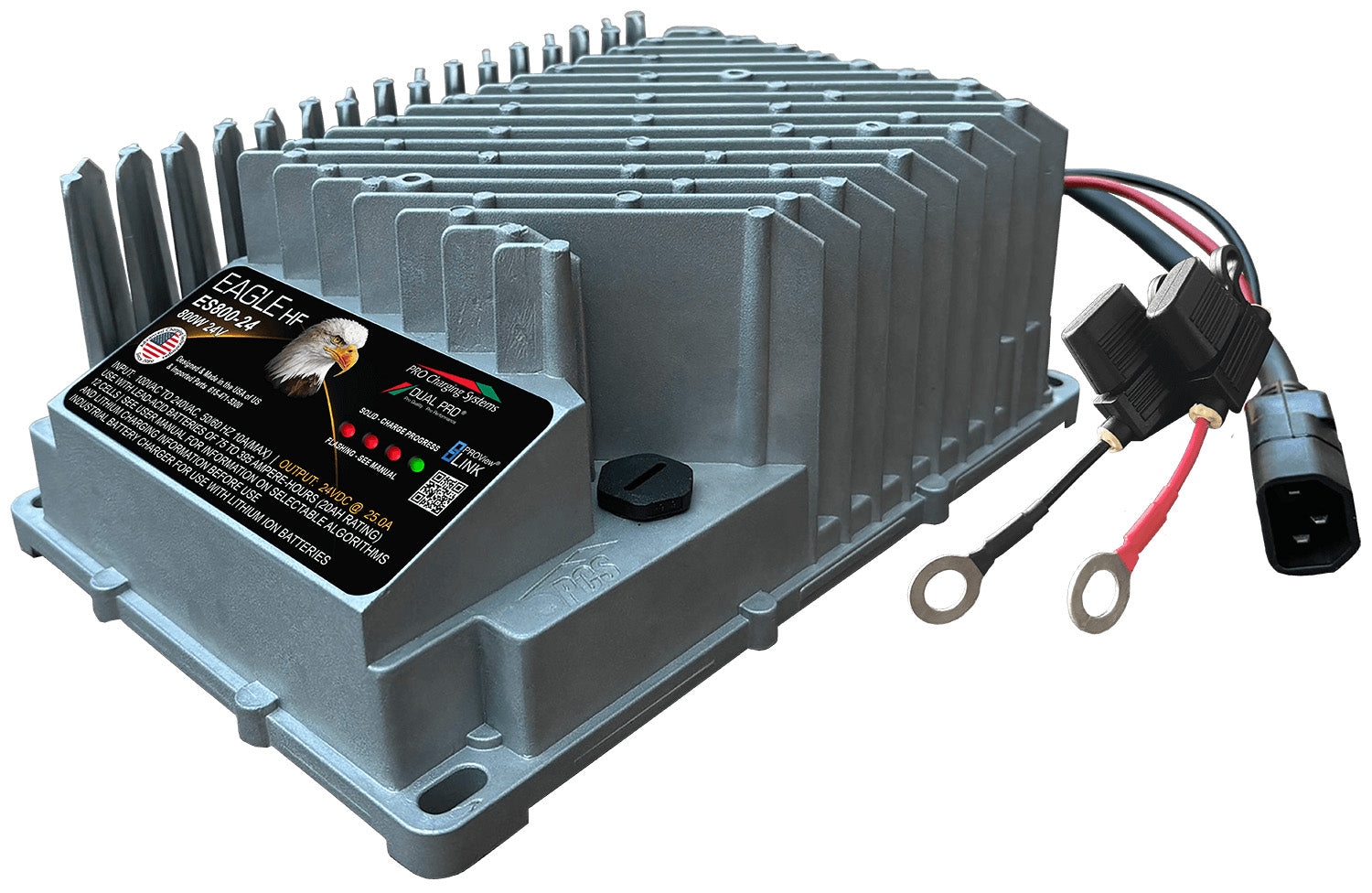

- Marine 24V, 36V & 48V systems include: ES0800-24V003, 36V003 & 48V003. Each feature ring terminals with inline blade fuses.

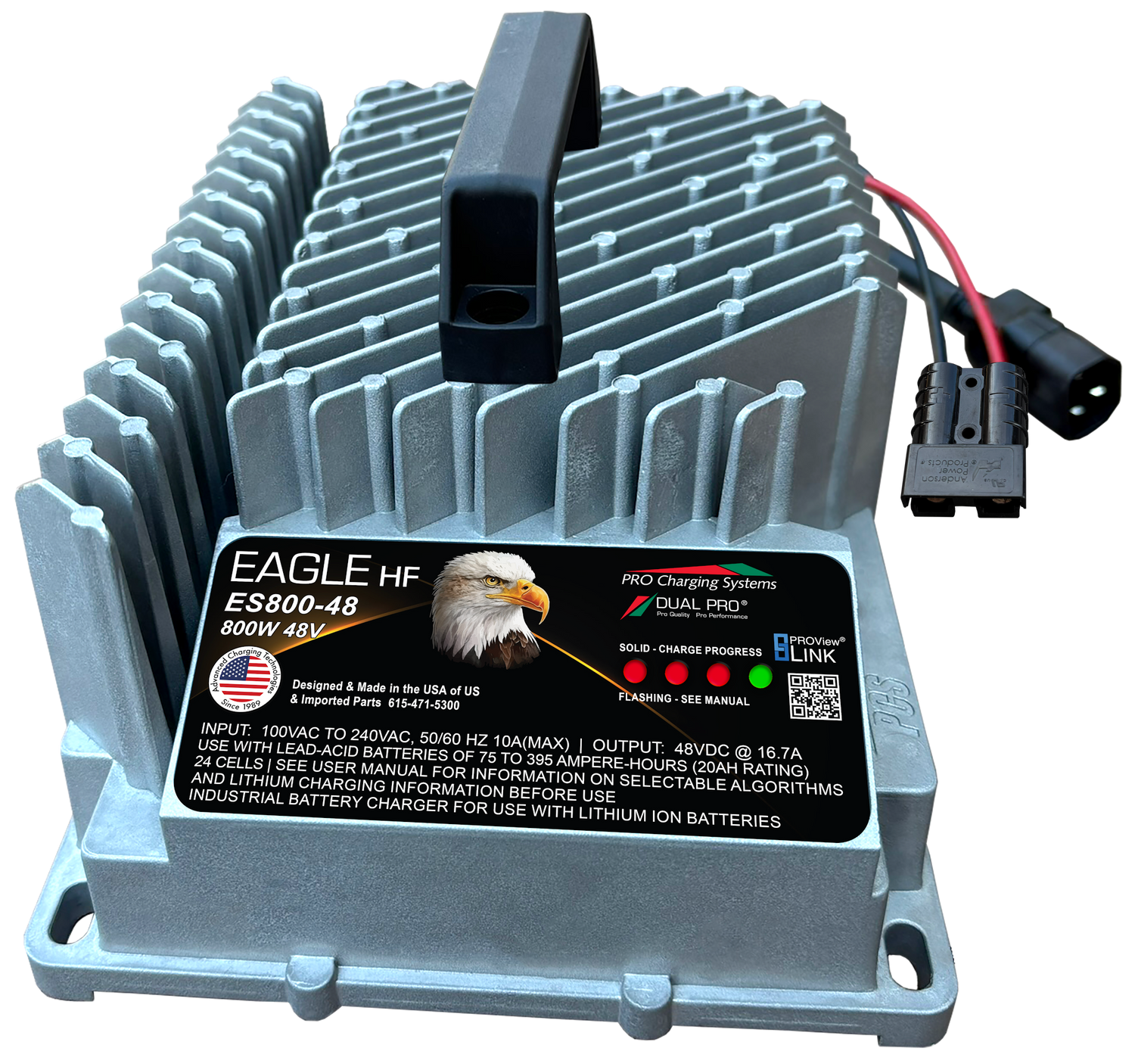

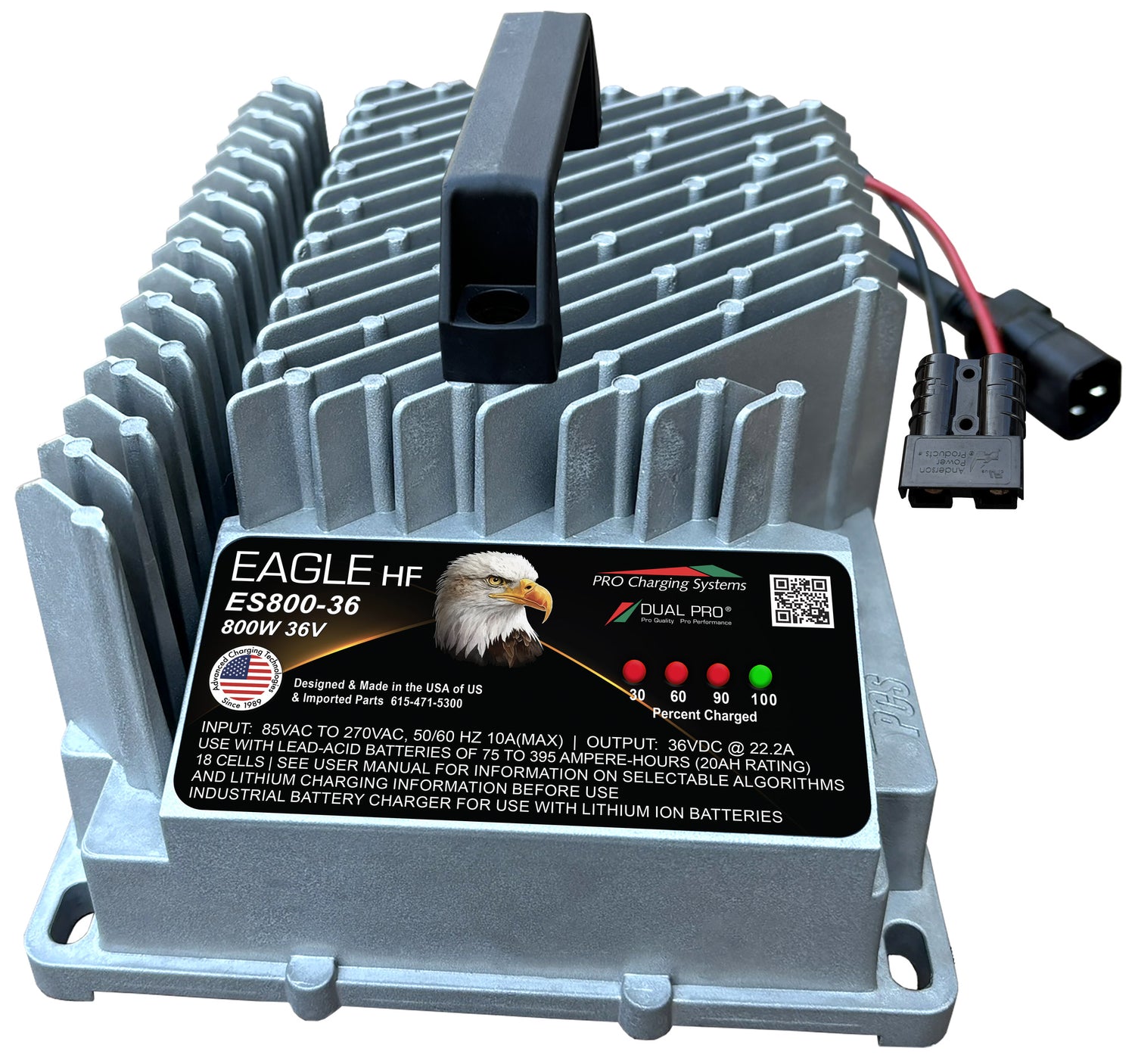

- Golf 36V & 48V systems include: Onboard models ES0800-36V001 & 48V001 feature ring terminals and a 3 ft. IEC cable. Portable charger part numbers are ES0800-36V002 or 48V002 and feature SB50 connectors. We have 7 ft. connector assemblies for most major cart manufactures. Handle kits with rubber feet as well as a 6 ft. IEC cable are also available.
More models will be released on the store as they become available. See below for more information on the Eagle HF offerings.
Eagle Series HF
High Frequency 800W Charger
For Marine, Golf, Aerial, Emergency Services, Floor Scrubbers & more
Overview:
- Portable & Onboard Options
- Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A
- AC Universal Input (85-270 VAC 50/60HZ)
- CAN Capable
- PROView Link App Enabled to receive over the air updates and more
- Dimensions: L10" x W7.15" x H4"
- Weight: 11 LBS
- Developed to be interleaved for higher output requirements
- US Designed and Assembled
Market
Marine
24V and 36V Models
Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM or Lead Acid batteries and more. Click below for more info.
Part Numbers:
- ES0800-24V003
- ES0800-36V003
- ES0800-48V003
Market
Golf & LSV
Onboard & Portable 36V & 48V Models
Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry.
Portable Part Numbers:
- ES0800-36V002
- ES0800-48V002
Handle Kit with feet and 6 ft IEC AC cord available in the store.
Onboard Part Numbers:
- ES0800-36V001
- ES0800-48V001
Market
Aerial Equipment
24V, 36V, & 48V Models
Our chargers work with most Scissor and Boom Lift's as well as various carts and burden carrier's manufacturers. Click below for more information and compatibility.
Contact PCS for specific part number for your lift/boom.
Market
Floor Scrubbers
24V, 36V, & 48V Models
Rugged and Waterproof to work in any Janitorial / Industrial environment.
Market
Emergency Services
First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed.
Various Markets
Your Equipment
24V, 36V, & 48V Models
The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free to download PROView Link App.
We are located in LaVergne, TN
USA
PCS / DUAL PRO is proud that the ES800 has been Designed, Developed, Tested & is Assembled (with domestic & imported components) within our facility located just outside Nashville, TN.
Contact one of our local customer support or sales team members at our plant for more details. We might greet you with an accent, but it will be a Tennessee accent!
